As teams add billing assistants, support agents, and specialized tools to their systems, routing quality starts to vary wildly. Anthropic's own guidance notes that routing works well when categories are distinct and can be classified accurately — but getting there takes deliberate design, not luck.
This guide covers exactly how to build one: the six-step process, when you actually need a router versus when you don't, the parameters that move accuracy up or down, and where build-vs-buy tradeoffs come in.
Key Takeaways
- An agent router classifies incoming requests and directs them to the right agent, tool, or service
- Building one starts with defining agent roles and choosing a routing approach
- It also means designing a structured schema and wiring conditional logic with fallback paths
- Routers earn their keep once you have 3+ specialized agents or multiple integrated services
- Most routing failures trace back to vague role definitions and missing fallbacks, not the framework you chose

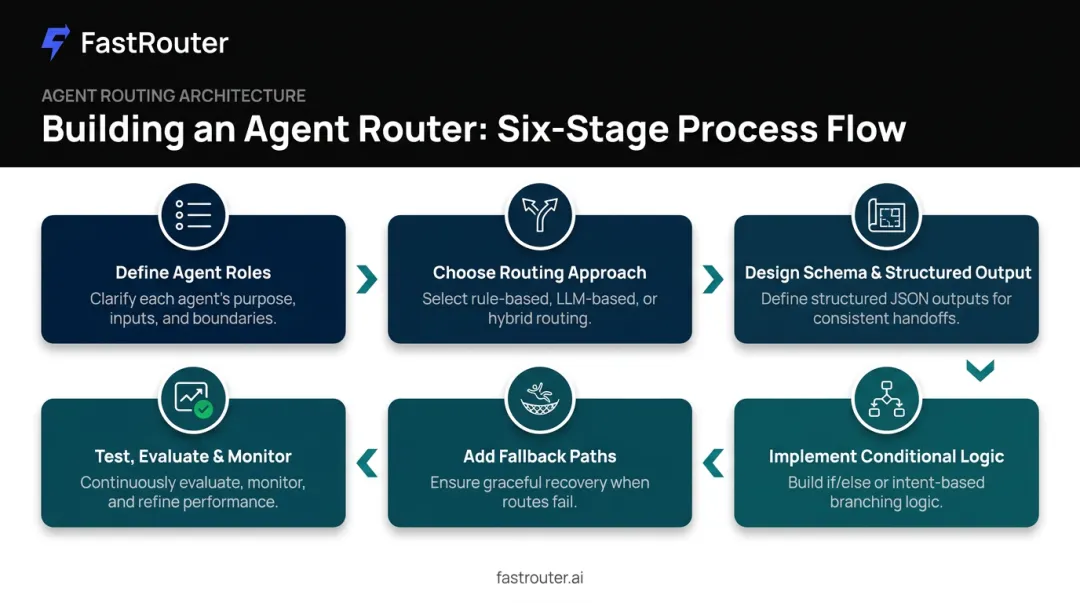

How to Build an Agent Router: Step-by-Step Guide
These steps apply whether you're using LangGraph, CrewAI, or writing routing logic from scratch in Python.
Step 1: Define Agent Roles and Routing Categories
List every specialized agent you're building (billing assistant, login assistant, order-status agent, default/general assistant) and write down the exact scope of each.
The goal: zero overlap between categories.
Ambiguous or overlapping roles are the single biggest cause of misrouting. If your "billing assistant" and "account assistant" both plausibly handle "why was I charged twice," your router will guess wrong on a meaningful chunk of traffic.
Do this for each agent:
- Write one sentence describing what it handles
- Write one sentence describing what it explicitly does NOT handle
- List 5-10 example queries that belong to it
- Cross-check against every other agent's examples for overlap
Step 2: Choose a Routing Approach
There are three main techniques, and picking the right one depends on your accuracy needs versus your latency budget.
| Approach | How it works | Best for |
|---|---|---|
| Rule-based / code | Keyword matching, regex, if/else logic | Small, stable category sets |
| ML classifier | Trained model on labeled intent data | Medium complexity, need for speed |
| LLM-based / function calling | LLM reads the query and picks a category | Nuanced, overlapping, or evolving intents |
OpenAI's own framing of orchestration draws this same line: code-driven orchestration is more deterministic and predictable in cost and performance, while LLM-driven routing can reason through ambiguity but costs more and runs slower.
Start with the simplest approach that hits your accuracy target. A regex-based router that gets you to 95% accuracy at near-zero latency beats an LLM router that gets you to 97% accuracy with a 400ms tax on every request.
Anthropic also recommends routing easy requests to smaller, cheaper models and reserving capable models for hard cases. The same principle applies to routing decisions themselves.
Step 3: Design the Routing Schema and Structured Output
Your router needs a state object (typically containing the query, the selected category, and eventually the response) plus a structured output format that constrains the router to a fixed set of valid answers.
Use an enum or Pydantic model, not free text. Free text invites the router to return "billing_agent" one time and "Billing Agent" the next, breaking your downstream conditional logic.
For LLM-based routers, this usually means:
- Defining a JSON schema with an enum field listing valid categories
- Setting strict mode where supported, so the model can't invent categories outside your list
- Validating the response before passing it downstream
Single vs. multi-agent routing matters here too:
- Single-agent routing returns one category: the query goes to exactly one agent
- Multi-agent routing can return multiple categories, fanning the query out to several agents in parallel
LangChain's router implementation reflects this distinction directly: it can send a query to one destination or fan it out to several agents in parallel, depending on whether the underlying schema allows single or multiple selections.
Step 4: Implement the Conditional Routing Logic
Once your router returns a category, you need to wire that output to actual execution paths.
In graph-based frameworks, this means conditional edges: a function reads the router's output and directs execution to the matching node. If your schema supports multiple categories, those edges can fire in parallel rather than sequentially.
Common implementation pattern:
- Router node produces a structured category (or list of categories)
- Conditional edge function maps category → next node
- Matched node(s) execute independently
- Results merge back into shared state
Once single-level routing is stable and tested, you can layer in hierarchical routing: a second router living inside a specific agent, handling sub-categories within that agent's domain. CrewAI's hierarchical process, for example, uses a manager to allocate work by role and validate results before it's considered complete.
Don't build this on day one. Get flat routing working first.
Step 5: Add Fallback and Error-Handling Paths
Every router will eventually get a query that doesn't clearly fit any category, or that returns a low-confidence classification. You need a default path for these — often a human-in-the-loop handoff or a general-purpose fallback agent.
Build for:
- Queries with no clear category match
- Low routing confidence scores
- Conflicting signals across multiple categories
For the human-in-the-loop path, frameworks like LangGraph support an interrupt mechanism that pauses execution, persists the exact graph state, and waits for external input before resuming — useful when a query needs a person to make the call.
Don't skip context preservation. If your router treats every message as a stateless, one-off classification, multi-turn conversations lose critical information across turns, forcing the downstream agent to re-infer intent and increasing the odds of a hallucinated response.
Persist conversation history at the thread level so both the router and the agent it hands off to can see prior turns, not just the latest message.
Step 6: Test, Evaluate, and Monitor in Production
Before shipping, curate a labeled test dataset of representative queries — real examples mapped to their correct category. Measure:
- Accuracy: overall percentage of correct routing decisions
- Precision: of the queries routed to a category, how many belonged there
- Recall: of the queries that belonged to a category, how many got routed there
Compute these per-category and check the confusion matrix, not just the aggregate number. A router can hit 90% overall accuracy while completely failing one low-volume but high-stakes category.
Production traffic won't match your test set forever. Real users phrase things your test data never anticipated, and that drift compounds quietly over weeks.
This is where ongoing trace-level monitoring earns its place: a unified LLMOps control plane like FastRouter's observability tooling helps teams track routing decisions and model performance across providers, without standing up custom logging infrastructure for every agent and provider combination separately.
When Should You Build a Custom Agent Router?
Not every multi-agent system needs a dedicated router. Some frameworks distribute routing logic across individual nodes instead, and for simple pipelines, that's fine.

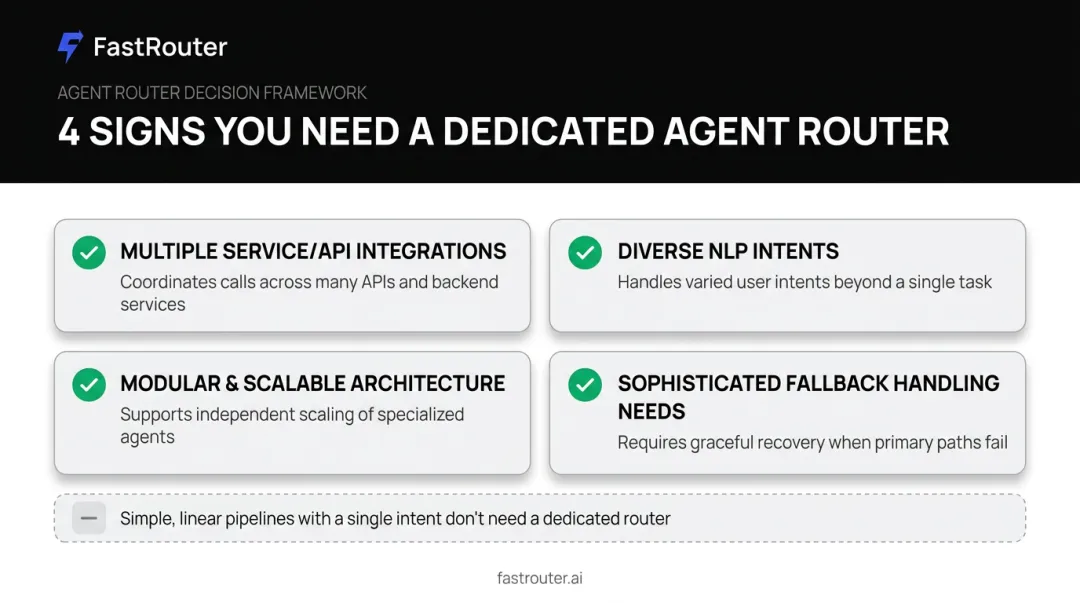

Use Cases That Justify a Router
A dedicated router earns its complexity when you have:
- Multiple service/API integrations that each need different handling logic
- Diverse NLP intents spanning several distinct problem domains
- Modular, scalable architecture requirements where agents get added or swapped over time
- Sophisticated fallback handling needs, such as regulated industries requiring human review paths
Non-deterministic, complex agent systems benefit most from an explicit router. If your workflow is a simple linear pipeline (step 1, step 2, step 3, always in that order), you probably don't need one at all.
Prerequisites Before You Start
Before writing any routing code, confirm you have:
- A clear map of available agents and tools, with the scope work from Step 1 already done
- A labeled or example query set for each category, even 20-30 examples per agent is a start
- An orchestration framework or codebase to host the routing logic
One readiness check matters more than people think: logging and tracing infrastructure should exist before launch, not after. Platforms like FastRouter build this in by default, giving you request-level tracing and per-model routing logs without custom instrumentation work. You want to audit routing decisions from day one, not reconstruct them retroactively once something breaks.

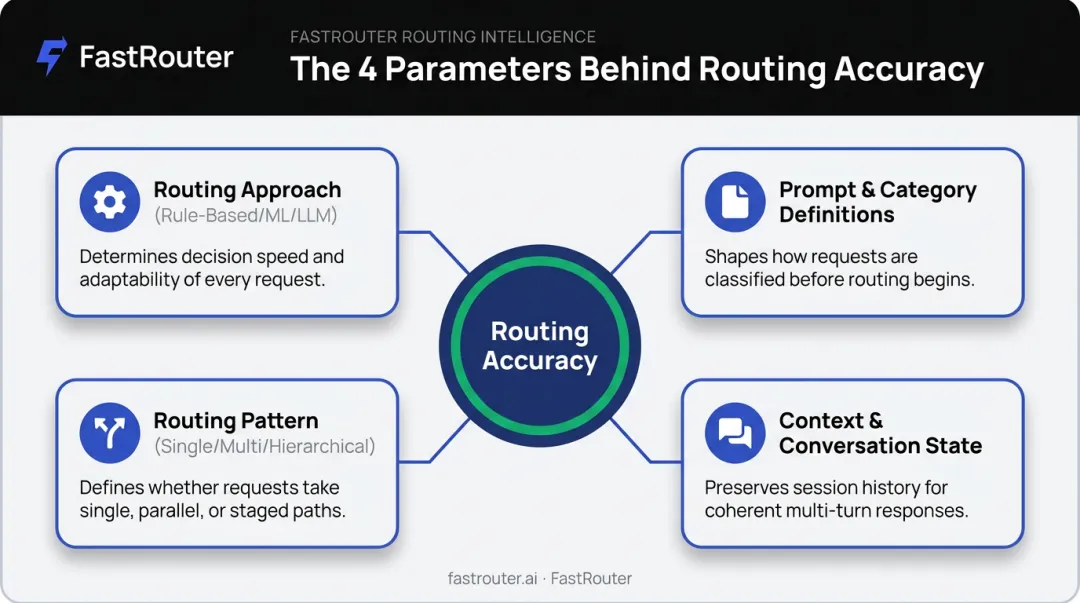

Key Routing Strategies & Parameters That Affect Performance
Routing accuracy depends on a handful of controllable variables — not just which framework you picked.
Routing Approach (Rule-Based vs. ML vs. LLM-Based)
This determines your flexibility, cost, and latency tradeoffs directly. Rule-based routing is fastest but brittle against phrasing it wasn't built for. LLM-based routing handles nuance well but introduces stochastic risk: the same query can occasionally route differently, and it adds latency.
FastRouter's routing layer supports this exact tradeoff, letting teams apply rule-based paths for common queries and reserve LLM-based classification for ambiguous edge cases.
Prompt/Category Definitions and Examples
The router's classification quality is a direct function of how clearly you've described each category. Anthropic recommends 3-5 well-crafted few-shot examples per category that are relevant, diverse, and structured. Vague category descriptions with no examples are a leading cause of edge-case misclassification.
Routing Pattern (Single, Multi-Agent, or Hierarchical)
This determines whether one, several, or layered agents handle a given query. Hierarchical routing increases capability, but every additional level compounds error risk. If the top-level router is 92% accurate and the second-level router is 92% accurate, your effective end-to-end accuracy drops well below either number alone.
Context and Conversation State
Multi-turn conversations require the router to see prior turns, not just the current message. Losing that context forces the downstream agent to re-infer what's happening, which raises hallucination risk. This ties directly back to the state-preservation point from Step 5. Preserving context is an ongoing requirement throughout the conversation, not something you configure once and forget.
Common Mistakes & Troubleshooting Tips
Some routing failures are preventable at build time. Others only show up once real traffic hits the system.
Common Mistakes to Avoid
- Skipping example-based prompt engineering for the router, leading to inconsistent category selection across similar-sounding queries
- Overloading a single router with too many hierarchical levels before the basic, flat routing logic has even been validated
- Failing to implement API/tool permission boundaries, letting one agent access another's restricted functions or data
Quick Troubleshooting Fixes
| Problem | Likely Cause | Fix |
|---|---|---|
| Router misroutes multi-intent queries consistently | Single-category schema can't represent overlapping intents | Switch to multi-agent routing that returns multiple applicable categories |
| Routing accuracy degrades weeks after launch | Concept drift, where real queries no longer match training/test assumptions | Retrain or refine the classifier/prompt using fresh production examples |
| Correct agent selected, but final answer is wrong | The fault sits with the downstream agent, not the router | Trace the full call chain to isolate router-level errors from agent-level errors |
That last one trips up more teams than it should. It's tempting to blame "the router" whenever an answer looks wrong, but if the category selection was correct, the problem lives downstream: in the agent's prompt, tool access, or model choice, not in the routing logic.
Tools with built-in request tracing, like FastRouter's observability layer, make this diagnosis straightforward by logging each step from router decision to agent response.

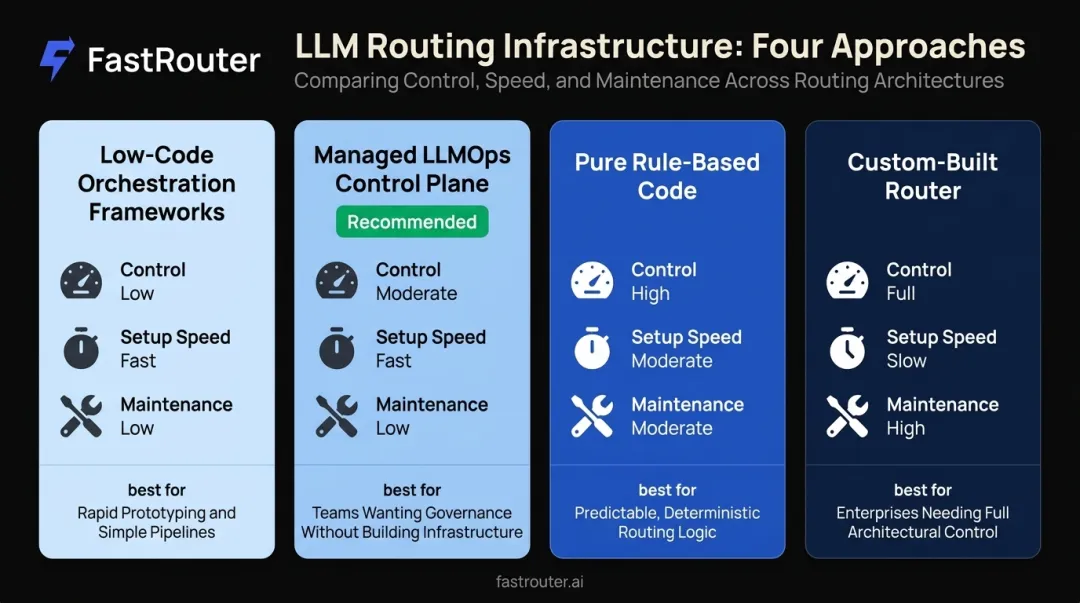

Alternatives: Build vs. Buy Your Agent Routing Layer
Building a custom router isn't the only path forward, particularly when your real goal is multi-provider model access rather than pure intent classification.
Low-Code Orchestration Frameworks (LangGraph, CrewAI, n8n) Better for teams that want visual or semi-managed routing without writing conditional logic from scratch. The tradeoff: less granular control over routing rules than fully custom code gives you.
Managed LLMOps Control Plane (FastRouter) Better for teams that need multi-provider model routing, cost governance, guardrails, and observability across 100+ models, without building and maintaining separate routing, logging, and evaluation infrastructure for every provider you use.
FastRouter's core capabilities include:
- Auto Router directs requests using configurable priorities: cost-optimized, low-latency, or high-throughput
- Instant failover reroutes requests automatically when a provider fails
- Consolidated billing rolls spend from OpenAI, Anthropic, Google, and others into one invoice
The tradeoff here is real: it's less bespoke than a router you built line-by-line for your exact use case. But it removes the operational burden of maintaining routing, fallback, and monitoring logic in-house, all through a single OpenAI-compatible endpoint your agents can call regardless of which model sits behind it.
Pure Rule-Based Code Routing Better for simple systems with a small, stable category set that rarely changes. Fastest and cheapest to run, but rigid: extending it as your system grows gets expensive fast, both in engineering time and in the accumulated technical debt of nested if/else logic.
Notably, an agent router and an LLM gateway solve different layers of the same problem, worth clarifying before you pick a tool, which the FAQ below covers.
Frequently Asked Questions
What is an agent router?
An agent router is the decision-making component in a multi-agent system. It analyzes an incoming query and directs it to the most appropriate specialized agent, tool, or service based on the query's content and intent.
What is a router in cybersecurity?
That's a different concept: a networking device that directs data packets between networks at the infrastructure level. An AI agent router directs queries between software agents, not network traffic between physical or virtual networks.
What's the difference between an agent router and an LLM gateway?
An agent router decides which specialized agent handles a task. An LLM gateway, like FastRouter, manages provider access, cost tracking, and reliability across those models. It's the infrastructure layer underneath the routing decision, not the decision itself.
Can I use LangGraph to build an agent router?
Yes. LangGraph's conditional edges and structured state make it a common choice for implementing single-agent, multi-agent, and hierarchical routing patterns, with built-in support for parallel fan-out when a query needs multiple agents.
How do you evaluate agent routing accuracy?
Routing is typically evaluated as a classification problem: accuracy, precision, and recall on a labeled test set, broken down per category. LLM-as-judge tools can supplement this with reasoning-level evaluation for harder edge cases.
Do I need a router if I only have one agent?
No. A dedicated router adds complexity with no payoff for single-agent systems. It becomes valuable once multiple specialized agents or services need coordinated, accurate handoffs between them.
